Electrical Panel Upgrades & Fuse Box Replacement in North York, Toronto

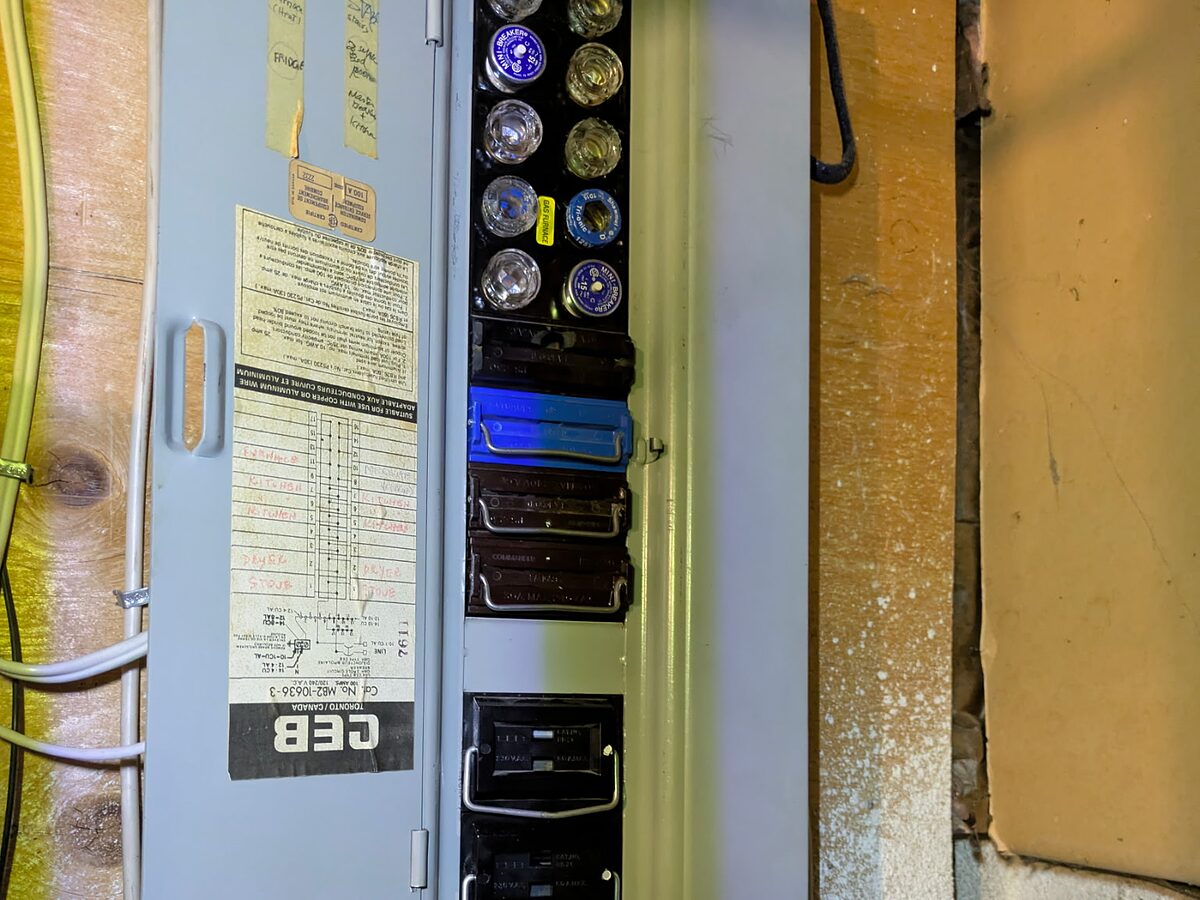

No. An existing fuse panel that was installed to the code in force at the time, and that has been properly maintained and not modified or overloaded, is generally permitted to remain in service. There is no blanket requirement to replace one.

What does create a problem is a panel that has been damaged, has had oversized fuses fitted, shows signs of overheating, or has been altered by someone unlicensed. Those are conditions, not categories — and they need a licensed electrician to assess them.

It depends on the condition of what you have and what you are asking of it. If the panel is in good order, has spare capacity, and the household’s demand is not changing, there may be no urgency at all.

The case for replacing gets stronger when fuses blow regularly, when there is no room left for another circuit, when the panel shows rust or heat damage, when replacement fuses are getting hard to find, or when you are adding load — a renovation, air conditioning, an EV charger, a basement suite. An assessment will tell you which situation you are in.

Some insurers do ask about the type and age of a home’s electrical panel, and about wiring methods such as knob-and-tube or aluminium branch circuits, when quoting or renewing. Policies and appetites differ a great deal between insurers.

We cannot tell you what your insurer will decide, and we would not claim that replacing a panel will reduce a premium. What we can give you is the documentation showing the work was done by a licensed contractor and inspected by the Electrical Safety Authority, which is generally what an insurer asks to see. The rest is a conversation between you and them.

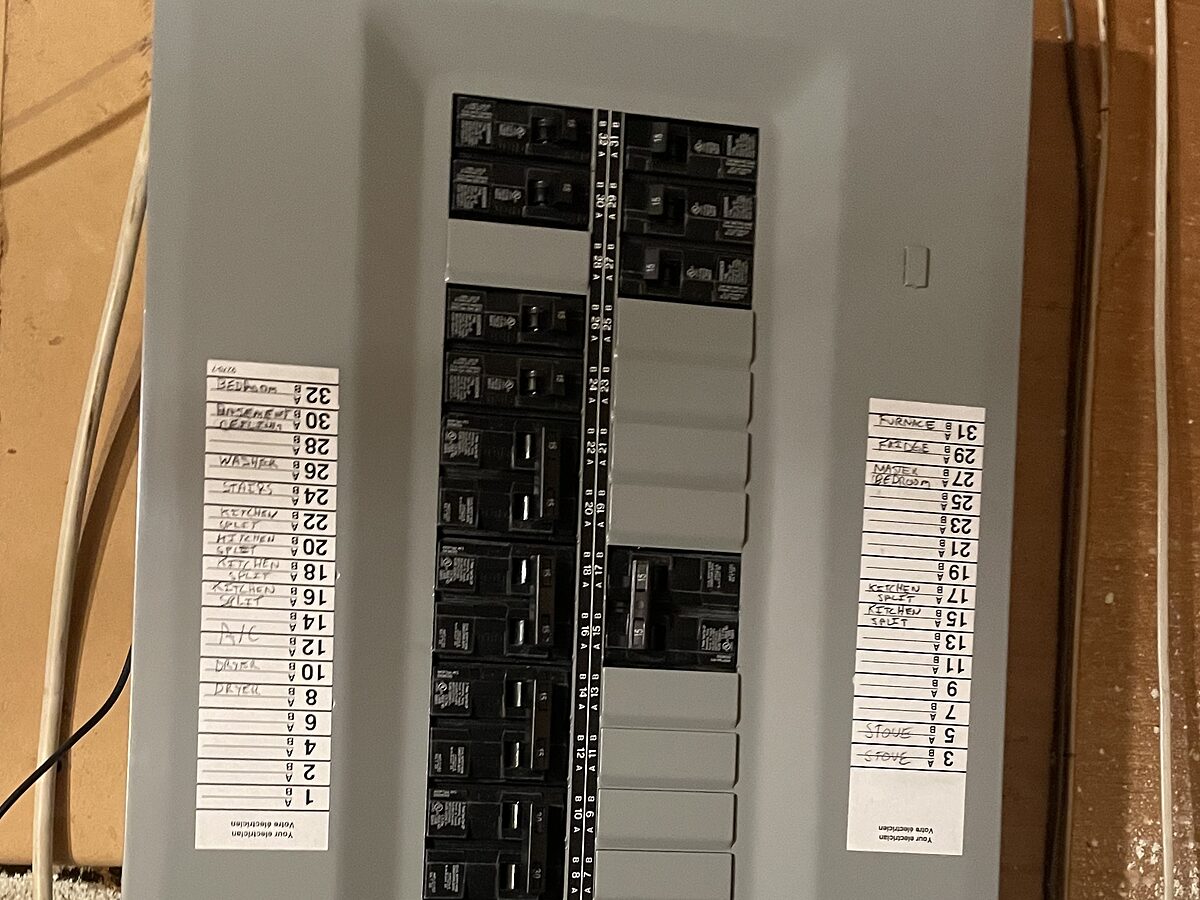

Many straightforward residential panel replacements are completed during a scheduled working day. That covers removing the old panel, installing and terminating the new one, labelling the circuits and testing before the system is returned to service.

A full service upgrade, a panel in a difficult location, or a job that uncovers existing deficiencies can take longer and may need more than one visit. Work that requires Toronto Hydro involvement also depends on the utility’s scheduling. We give you a realistic expectation in the written scope rather than a number that sounds good.

Yes. The supply has to be off for the portion of the day when the old panel is removed and the new one is installed and terminated — there is no way around that, and anyone who tells you otherwise should be treated with suspicion.

We plan the disconnection and reconnection in advance and tell you roughly how long to expect. It is worth thinking ahead about anything in the house that does not tolerate an outage well: home offices, medical equipment, freezers, aquariums, sump pumps. Mention those when you request the estimate and we will factor them into the plan.

Panel and service work in Ontario is notifiable to the Electrical Safety Authority, and the completed installation is inspected. A licensed electrical contractor files that notification before the work is carried out.

City Brite Electric handles the notification and coordinates the inspection as part of the job. You should be cautious about any quote for panel work that does not account for this.

The figure describes how much current the service to your home can supply at once. A 200-amp service can carry roughly twice the simultaneous demand of a 100-amp one.

In practice the difference shows up in what you can run together and what you can add later. A 100-amp service remains adequate for many Toronto homes, particularly with gas heating and a gas range. A 200-amp service becomes the sensible choice when electric heating, an electric range and dryer, air conditioning, EV charging or a secondary suite are in the picture — or are likely to be within the life of the panel.

Not necessarily, and this is one of the most common misconceptions we run into. Plenty of homes on a 100-amp service can accommodate a Level 2 charger, particularly where the heating is gas and the household’s overall demand leaves headroom.

What decides it is a load calculation, not the charger’s rating on its own. Depending on the result, the options may include installing the charger on the existing service, using a lower charging current, fitting equipment that manages the load so the charger and other large appliances do not draw at once, or upgrading the service. We work through those options rather than defaulting to the largest job.

Often, yes — if the load calculation supports it and the panel has a spare space of the right size. Where the panel is physically full but the service has capacity, a subpanel can sometimes solve it without touching the main service.

Where the calculation shows the existing service genuinely cannot carry the additional load, an upgrade is the honest answer. We will show you the calculation either way.

No. A panel replacement changes the distribution equipment, not the branch circuits running through the walls to your outlets, switches and fixtures. Those are a separate system and a separate scope of work.

If a home has knob-and-tube wiring, deteriorating insulation, undersized conductors or unsafe splices, replacing the panel does not address any of it. We assess the wiring during the site visit and tell you what we find, and we can quote rewiring separately if it is needed.

In many cases the new panel goes into the same location, the existing circuits are extended or re-terminated within the enclosure, and the finished surfaces around it are left alone.

It is not something we can promise in advance for every property. Relocating a panel, upgrading a service where the entrance conductors have to be re-run, or working around obstructions can all mean opening up a wall or ceiling. Where that looks likely we say so in the written scope, and drywall, plaster and paint are quoted separately.

The main ones are the existing and intended service size, whether it is a fuse or breaker panel coming out, the number and type of circuits, the condition of the service entrance and meter base, whether the service is overhead or underground, the grounding and bonding work required, arc-fault and ground-fault requirements for the circuits involved, whether Toronto Hydro has to be involved, ESA fees, and anything the assessment uncovers behind the panel.

That is why the estimate follows a site visit. The cost section above breaks these down in more detail.

It depends on whether the supply to the property is changing. Increasing a service — 60 to 100 amps, or 100 to 200 — generally requires the incoming conductors to be disconnected and reconnected, and may involve the meter, so the utility has to be scheduled in.

A panel replacement that keeps the same service size often does not require utility involvement. We can coordinate Toronto Hydro disconnect/reconnect when required, depending on the project and customer preference. We confirm which applies to your property during the assessment, and we identify any utility fees as the utility’s rather than ours.

Yes. Older housing is a significant part of residential panel work across North York and Toronto generally, and it is work we are set up for.

Older properties do need a more careful assessment: the service entrance and meter base may need attention alongside the panel, grounding and bonding arrangements are often from a different era, and there may be original wiring that has to be evaluated on its own terms. We look at all of it before quoting, rather than pricing the panel and discovering the rest on the day.

The most useful things are: whether you have a fuse panel or a breaker panel, the current service size if you know it (there is no problem at all if you do not), what is prompting the enquiry, and anything you are planning to add — a renovation, an EV, air conditioning, a basement suite.

Photographs help a great deal: the panel with the door open, the label or rating plate, and the meter outside. Only take them if you can do so safely from a normal standing position — never remove the panel cover. You are welcome to email photos to Info@CityBrite.ca after sending the form.
